Fuel Truck Loading and Unloading Procedures

REACH OUT TO US

EMCO Wheaton is a trusted name in fuel truck loading and unloading procedures, offering cutting-edge solutions that simplify operations while ensuring exceptional safety and efficiency. With decades of experience and a global network of engineering expertise, our products are designed to meet the challenges faced by operators in diverse markets and industries.

API Couplers and Adaptors

Our J0451, J0452, and J0453 API coupler and adaptor series are renowned for their ruggedness, versatility, and engineered precision. These products are trusted by leading names in the petrochemical industry for their ability to handle a wide range of fuel grades, including petrol, diesel, kerosene, and biofuels.

The J0453 API coupler stands out as the flagship product in this range, incorporating upgrades to deliver unmatched performance in fuel handling and transfer. Designed for road and rail applications, it is not only perfect for traditional fuels but is also geared to support the energy transition by accommodating emerging sources like biofuels.

Our sister company, TODO, provides premium loading and unloading solutions for the most demanding industry environments. Together, EMCO Wheaton and TODO deliver unmatched reliability and performance in fuel handling systems.

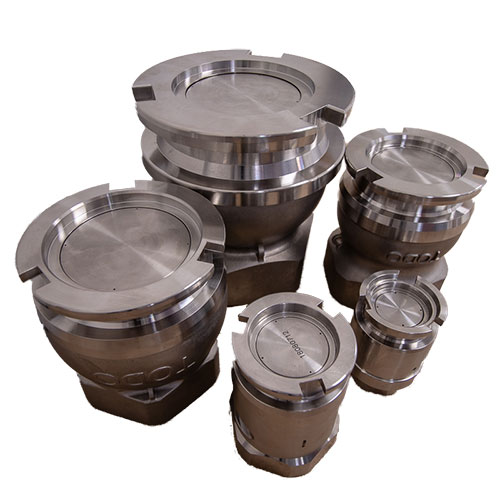

TODO MATIC

TODO-MATIC drybreak couplings are the product of over 30 years’ experience handling oil, gas and petrochemicals. Operator safety is our top priority.

Bottom Loading Arms for Enhanced Safety and Efficiency

EMCO Wheaton’s bottom loading arms are tailored to meet the demands of modern truck loading applications. Designed for filling multiple compartment tank trucks, bottom loading takes place at ground level, significantly improving operator safety.

Key benefits include:

Simultaneous Loading: Enables the loading of several truck tank compartments at once, speeding up operations.
Vapor Recovery Compatibility: Easily adaptable to vapor recovery systems for cleaner and safer processes.
API RP1004 Compliance: Conforms to industry standards for safe and reliable loading of tank trucks, rail cars, and other sealed vessels.

Comprehensive Range of Loading Arms

EMCO Wheaton offers a complete portfolio of loading arms capable of handling various liquids, including:

Petroleum Products
Liquefied Natural Gas
Hazardous and Non-Hazardous Chemicals
Food-Grade Liquids

Our systems include top loading arms, bottom loading arms, API couplers, and access equipment for loading platforms. These solutions are designed to meet the needs of truck, rail, and other vessel loading and unloading applications.

Loading Arm Types

We offer a range of chemical loading arms that can be used to load/unload virtually any type of container; from single compartment trailer trucks, to multi-compartment railcars. Enter the product tabs below to learn more about the different types of Emco Wheaton Loading Arms!

Safe & Reliable Bottom Hose Loaders

The Bottom Hose Loading Arm is designed specifically to use multiple arms together as a Bottom Hose Loading Station for bottom filling of multiple compartment tank trucks.

EM-En-Product-Photo-bottom-loading-and-unloading-V2

Bottom Transfer Loading Arm| Emco Wheaton

Bottom transfer arms are especially designed to load products where vapor return is necessary while providing an extended reach that makes them ideal for applications where a vehicle cannot be accurately spotted.

Bottom Loading Station

This type of loading arm is specially designed to load products where vapour return is necessary.

Tank Truck Accessories

Emco Wheaton offers a range of accessories to help you further customize and enhance your chemical loading arm. From heated steam jackets and breakaway couplers, to pneumatic and hydraulic handling systems; we can provide you with the equipment you need to improve the safety, performance, and handling of your chemical loading arms. Request a quote to get a loading solution designed specifically to meet your business needs!

Parallel Device for Bottom Loading Arms

The arm is fitted with six swivels for complete 3-axis movement of the tanker connection, allowing for tanker height changes during filling/discharge. The arm is additionally fitted with a parallel bar that holds the tanker connection arm ("B"-length) in a horizontal position irrespective of the primary arm ("A"-length) position. This makes tanker connection and disconnection much easier. The B-length also has a gas spring fitted allowing the operator to raise and lower the B-length with total ease.

EM-En-Product-Photo-quick-release-system-mechanical

Mechanical Quick Release System

Our mechanical Quick Release System provides automatic disconnection of a loading arm in the event of a tanker accidentally driving away. Simultaneously the product flow will be shut off both upstream and downstream of the disconnection point.

EM-En-Product-Photo-quick-release-system-pneumatic

Pneumatic Quick Release System

Our pneumatic Quick Release System provides automatic disconnection of a loading arm in the event of a tanker accidentally driving away whilst simultaneously shutting off the product flow both upstream and downstream of the disconnection point.

EM-En-Product-Photo-quick-release-system-hydraulic

Hydraulic Quick Release System

Our Hydraulic Quick Release System E0790 is used for the automatic separation of a connected loading arm from a tank vehicle in the event of an accidental drive-away whilst still connected. In this event, there is minimal loss of pressure in the rest of the connected supply.

Hose Release System for The Protection

Our Hose Release System is used for the protection of loading hoses during loading/unloading of barges, providing environmentally safe handling of loading hoses.

Telescopic Drop Tube

is used with a bottom contact switch, ensuring that the drop tube is permanently in touch with the bottom of the tanker being loaded. Our telescopic drop tubes can be either manually or pneumatically operated. Manually operated telescopic drop tubes are robust and have a short installation.

Heating Systems for Products

Designed to keep loaded fluids in a liquid state, used for products with low and middle temperature ranges or if there is no other heating media available.

Overfill Safety Device

Secondary safety system which prevents product overflow, for example in the case of an incorrect pre-selected loading amount.

Control Systems for Loading Arms

Systems for the comfortable and safe operation of loading arms.

SURELOK Couplings

Represent the most innovative method of producing fast and tight connection between two hoses or a vessel and a hose. These couplings comply with the safety requirements of the chemical and oil industries.

Vapor Cones and Plates

Adding a vapor cone or plate with a vapor recovery system on the arm, this improves the profitability of the terminal because vaporized product can be recovered and does not pollute the environment.

Other Accessories

Accessories	Seal Materials
Vapor Cone	Viton A, Buna, GFLT, EPDM, FEP, FVMQ, UHMPWE, Fluoroloy K, Chemraz, Kalrez
Vapor Plate	Viton A, Buna, GFLT, EPDM, FEP, FVMQ, UHMPWE, Fluoroloy K, Chemraz, Kalrez
Level Probe	Viton A, Buna, GFLT, EPDM, FEP, FVMQ, UHMPWE, Fluoroloy K, Chemraz, Kalrez
Vapor Piggyback	Viton A, Buna, GFLT, EPDM, FEP, FVMQ, UHMPWE, Fluoroloy K, Chemraz, Kalrez
Steam Jacket Heating	Viton A, Buna, GFLT, EPDM, FEP, FVMQ, UHMPWE, Fluoroloy K, Chemraz, Kalrez
Electrical Trace Heating Handles	Viton A, Buna, GFLT, EPDM, FEP, FVMQ, UHMPWE, Fluoroloy K, Chemraz, Kalrez
Position Switches	Viton A, Buna, GFLT, EPDM, FEP, FVMQ, UHMPWE, Fluoroloy K, Chemraz, Kalrez
Telescopic Drop Pipe	Viton A, Buna, GFLT, EPDM, FEP, FVMQ, UHMPWE, Fluoroloy K, Chemraz, Kalrez
Local Control Panel	Viton A, Buna, GFLT, EPDM, FEP, FVMQ, UHMPWE, Fluoroloy K, Chemraz, Kalrez

Advanced Fuel Truck Loading and Unloading Solutions
